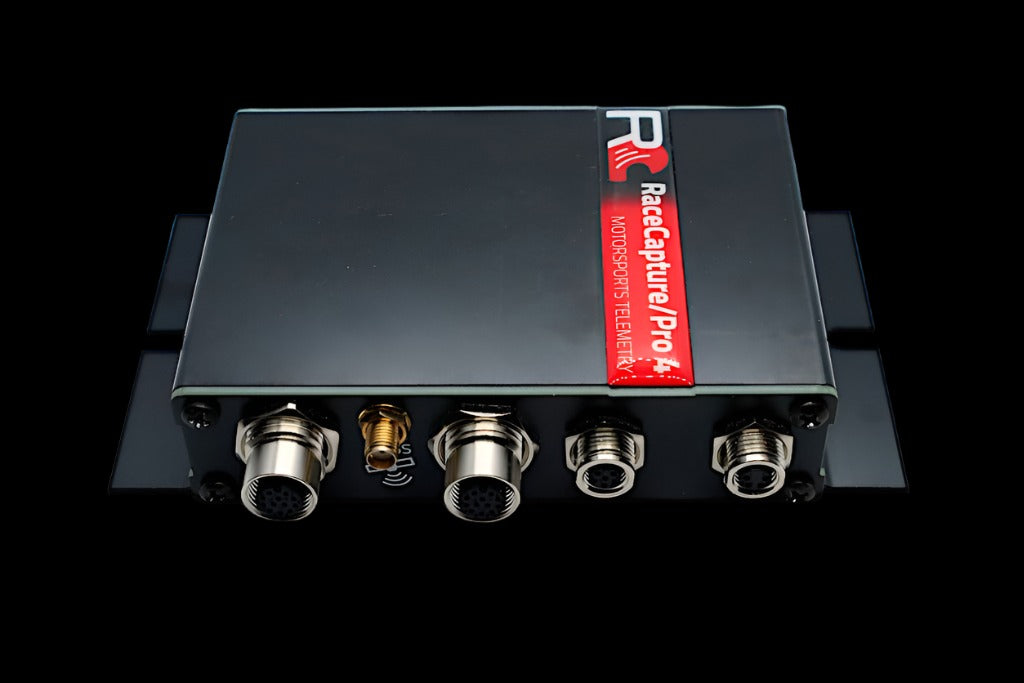

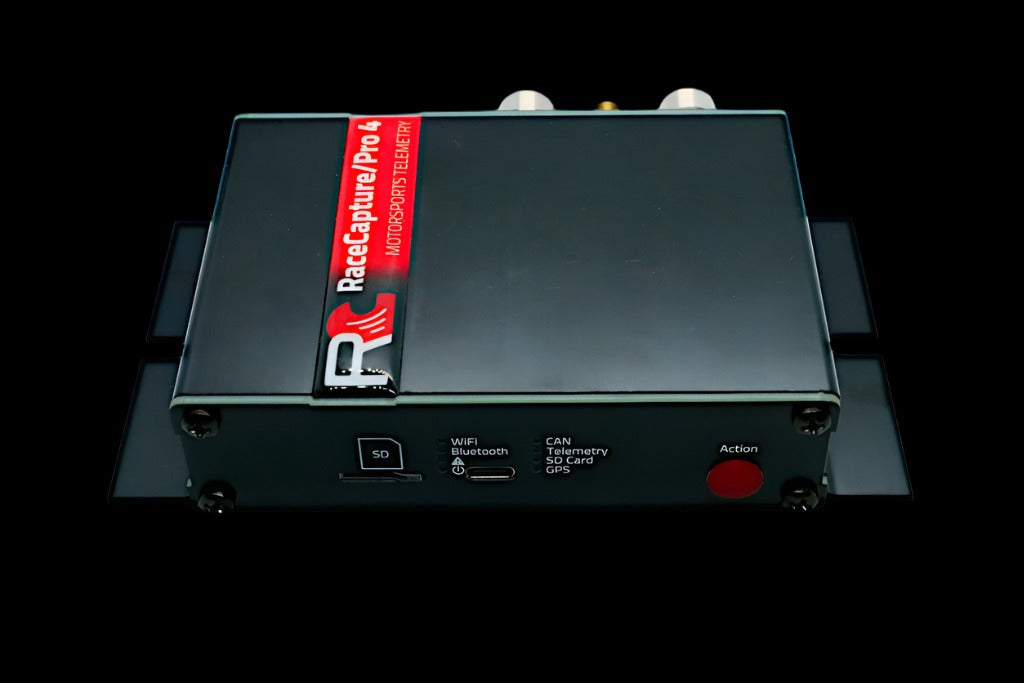

RaceCapture/Pro MK4 Lap Timer, Data Logger & Telemetry

 Advanced Data, Telemetry, and Control for Racing

The RaceCapture/Pro MK4 is the latest in motorsports telemetry technology, designed to maximize your track time and performance. With an optional 4G LTE telemetry feature, this system offers real-time data streaming, predictive lap timing, and robust data logging capabilities, ensuring you have the insights you need when you need them most.

Equip your race car with the RaceCapture/Pro MK4 for unparalleled data acquisition, telemetry, and performance insights.

Key Features

Real-Time Data Streaming

• Stream your race data live to Podium for real-time analysis of engine, chassis, and driver performance. Share and compare your laps with friends, colleagues, and race coaches globally. Learn more at Podium.

Easy Sensor Connections

• Simplify your setup with rugged, plug-and-play wiring harnesses. No crimping, splicing, soldering, or heat shrink required.

RaceCapture App

• Create custom dashboards, monitor sensor data, and view predictive lap times with real-time delta feedback. The app supports Android, iOS, Windows, and OSX, making it versatile for various devices.

Dashboard Customization

• Start with pre-made dashboards or design your own from scratch. Create alerts for any channel to monitor critical engine data and specialty sensors like tire and brake temperatures.

Built-in Analysis

• Instantly review your laps and runs with touch-optimized analysis features, accessible on both mobile devices and desktop computers.

Comprehensive Wireless Connectivity

• Integrated WiFi and Bluetooth 2.0 enable easy connectivity to the RaceCapture app on your devices. Optional 4G LTE cellular telemetry provides real-time data streaming to Podium, compatible with carriers worldwide, including Verizon, AT&T, O2, Telstra, and more.

High-Performance GNSS

• The internal multi-constellation GNSS module supports GPS, GLONASS, BeiDou, and Galileo with up to 25Hz sample rates for precise position, speed, and altitude data.

Predictive Lap Timing

• Access hundreds of pre-loaded tracks and use the interactive track map builder to get accurate lap times and statistics.

6-Axis IMU

• Analyze 3-axis G-forces plus yaw, pitch, and roll using the high-performance 6-axis Inertial Measurement Unit (IMU).

Dual CAN Bus Channels

• Two CAN 2.0 compliant channels with up to 1MBPS baud rates. Map CAN data channels using built-in OBD-II, direct CAN channel mapping, or custom logic via Lua scripting. Software-controlled CAN termination simplifies setup.

Powerful ECU Integration

• Supports CAN-enabled ECUs like MoTeC, Link, AEM, and Megasquirt, as well as OEM-specific CAN networks. Map data from two different CAN bus channels for maximum flexibility.

Versatile Inputs and Outputs

• 8 external 0-5v analog inputs, 4 channel timers for RPM/frequency, and 4 general-purpose I/O ports. Onboard micro-SD card slot supports up to 32GB for data logging.

USB and GoPro Integration

• USB interface for configuration and firmware updates. Use built-in WiFi to control a GoPro camera via speed-based triggers for synchronized data and video recording.

Extensible Scripting

• Customize behaviors using Lua scripting for real-time calculated channels, sensor-based triggers, and communication with other devices.

Included Components

• RaceCapture/Pro MK4 system
• Power + CAN1 data pigtail
• External magnetic mount GNSS antenna
• Roof mount cellular antenna (with cellular telemetry option)
• USB cable
• Quick start guide
• Note: Harness components sold separately

Specifications

Sensors

• Analog Inputs: 9 channels (8 external, 1 internal)
• Digital I/O: 4 channels, open drain
• Timer Inputs: 4 channels for RPM/frequency

Voltage Reference

• Output Voltage: 5v / 500mA

CAN Bus

• Channels: 2
• Baud rate: Up to 1MBPS
• Filters: 14 per channel

Cellular Telemetry (Optional)

• 4G LTE worldwide-compatible

Wireless

• WiFi: 802.11bgn
• Bluetooth: 2.0 EDR

GPS

• Sample Rates: 1 / 5 / 10 / 25Hz

Inertial Motion Unit

• Accelerometer: 3 channels (2G, 4G capable)
• Gyro: 3 channels (1000 degrees/sec)

Storage

• Micro SD: Up to 32GB

Channel Support

• Up to 200 channels

Predictive Lap Timing

• Built-in with 200 pre-loaded track maps

Physical

• Dimensions: 150 x 85 x 30mm
• Temperature range: -40 to 85°C
• Environmental: IP67 connectors, IP51 enclosure
• Weight: 255g

Power Consumption

• Max 9.6W with all features active

Notice: References to AiM, MoTeC, and GoPro trademarks do not imply any affiliation or endorsement.
