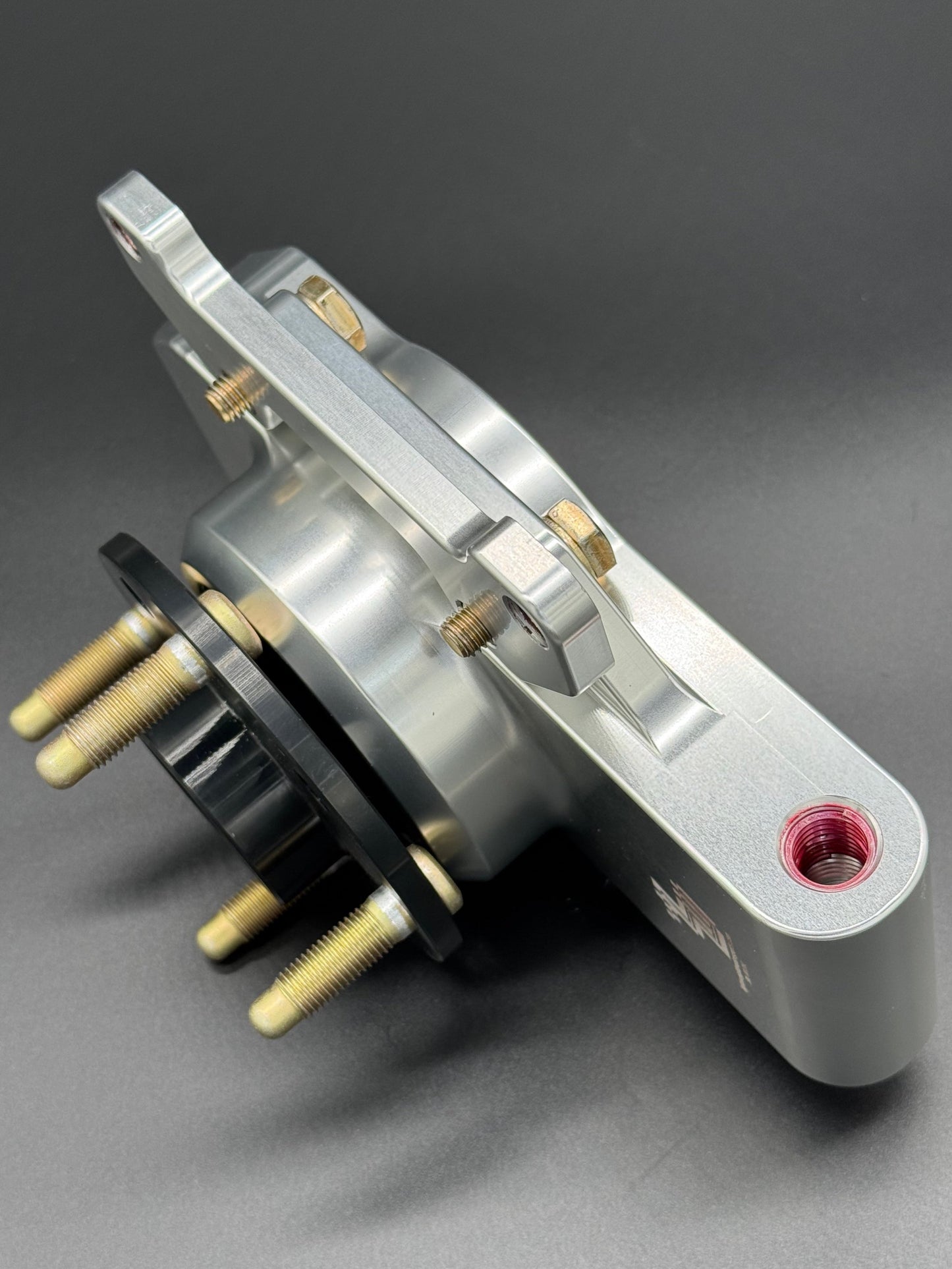

Palatov-Designed Ariel Atom Uprights

Now in stock! Available now for all Atom 2, Atom 3 and SRA vehicles!

The #1 most popular upgrade for the Ariel Atom is back!

The original Dennis Palatov-designed Ariel Atom Uprights are now available from Lightweight Motorsports, the new exclusive manufacturer of this legendary part.

Improve the strength of your Ariel Atom with these custom-machined uprights, made from 6061-T6 aluminum which is considerably stronger than the factory steel design. Upgraded 80mm bearings improve reliability and reduce the chances of a catastrophic failure on the track. Modular steering arm design and multiple brake mounting options mean that this will be the last set of uprights you'll ever need to buy.

The rave reviews of the original Dennis Palatov design have proven that this is a must-have part for any Ariel Atom that has not yet been converted.

After ordering, we will email you with questions about your car so that we can get you the perfect setup using the options below - please keep an eye out for it!

Available customization options included at no extra charge:

• Wheel lug bolt pattern
  • 4x95.25
  • 4x100
• Wheel lug length
  • Standard (1.85")
  • Extended +1" (2.85") for cars that use wheel spacers
• Rear axle spline count (we will ask you to remove your axle nut and count splines just to be sure)
  • 25 spline
  • 26 spline
  • 33 spline
• Brake caliper type
  • Wilwood
  • Alcon
• Parking brake setup
  • No parking brake
  • Wilwood manual parking brake (MC4)
  • Wilwood electronic parking brake (EPB) kit
  • Alcon parking brakes
  • Mr Parker / Revolution parking brake
• Front fender setup
  • No front fenders
  • TMI / Ariel UK style (one bolt through steering arm & tie rod bolt)
  • Brammo style (2 bolts into side of steering arm)
• Rear fender setup
  • No rear fenders
  • Rear fenders installed (2 bolts into upright, all Atom 2/3/3.5 setups)
• Traction control
  • No traction control
  • Include sensor mounts & front reluctor rings/pedestals (made for factory TCS, works if you are custom-fitting aftermarket TCS or ABS)
• Front lower control arm style
  • Heim joint / rod end style (all Atom 3/3.5, UK Atom 2)
  • Ball joint style (Brammo; replacement ball joint studs made for Howe 224059 ball joint housings included)
